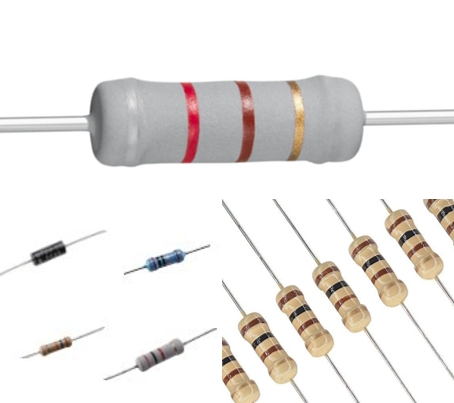

Dual In-line Package Resistor

A DIP resistor (short for Dual In-line Package resistor) is a type of resistor with a two-row pin layout that’s designed for through-hole soldering. It has two parallel rows of metal pins, making it easy to plug into a DIP socket or solder directly onto a PCB.

Because of its simple structure, durability, and ease of replacement, DIP resistors are widely used in things like industrial control systems, power management circuits, and audio equipment.

more+

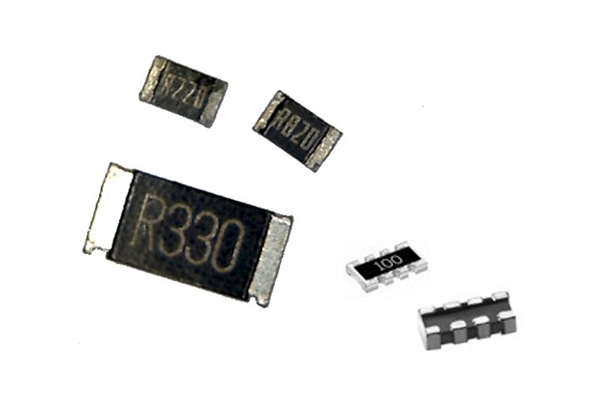

Surface-Mount Device Resistor

An SMT resistor (Surface Mount Technology resistor) is a common electronic component used in surface-mount circuits. It’s mainly used for things like limiting current, dividing voltage, and adjusting signals.

Compared to traditional DIP resistors, SMT resistors are much smaller, making them perfect for high-density PCB designs. They also work well with automated production, which boosts manufacturing efficiency. You’ll find them in all kinds of devices—from consumer electronics and communication gear to industrial control systems.

more+
